Number |
Title |
Description |
Price $ |

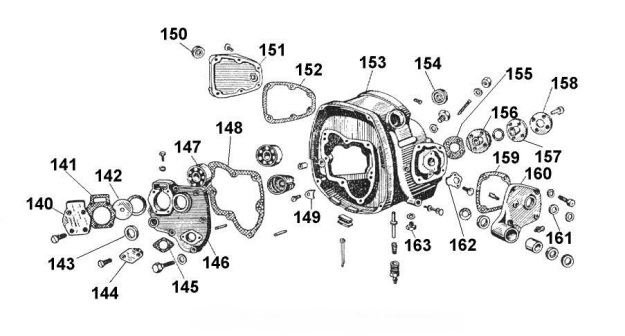

140. |
Front bearing cover flange |
||
141. |
Gasket |
||
142. |
Bearing cap |
||
143. |
Gland |
$ 32/45/8 mm. |
|
144. |
Shaft sleeve releaser |
||
145. |
Laying shaft trigger mechanism |
||
146. |
Front cover |
||
147. |
Ball-bearing |
||
148. |
Gasket |
||
149. |
Pawl ratchet starter |
||
150. |
Omentum manual gearshift lever |
$ 25/12/5 mm. |
|
151. |
Right cover gearbox |
||
152. |
Gasket |
||
153. |
Crankcase |
||
154. |
Gland |
Size 36/48 / 8 mm. |
|
155. |
Gasket rear bearing shaft trigger mechanism |
||
156. |
The rear shaft bearing trigger mechanism |
||
157. |
Rear hub shaft trigger mechanism |
||
158. |
Gland |
||
159. |
Gasket |
||
160. |
Left Cover |
||
161. |
Gland |
$ 25/12/7 mm. |
|
162. |
Switch dogs |
||
163. |
Drain and fill plug crankcase |
Number |
Title |
Description |
Price $ |

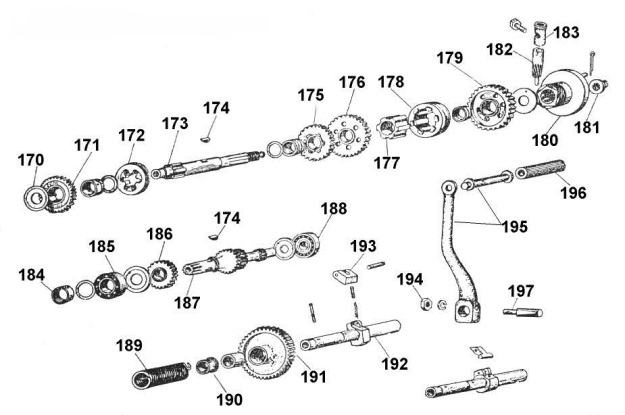

170. |
Maslootboynaya washer |
||
171. |
Gearwheel 4th gear |
||
172. |
Sleeve 3rd and 4th gear |
||
173. |
Driven shaft |
||
174. |
Spline |
||
175. |
The clutch driven shaft |
||
176. |
Pinion with cams |
||
177. |
Splined hub |
||
178. |
Claw clutch |
||
179. |
Pinion with holes |
||
180. |
Flange elastic hinge |
||
181. |
Disc clutch PTO shaft |
||
182. |
Speedometer Drive Gear |
||
183. |
Bush |
||
184. |
Gland |
||
185. |
Ball-bearing |
||
186. |
Gear wheel of 4th transfer primary shaft |
||
187. |
Primary shaft with gears |
1st, 2nd, 3rd gear |
|
188. |
Roller |
||
189. |
Spring pedal trigger mechanism |
||
190. |
Bush |
||
191. |
Internal gear releaser |
||
192. |
Val releaser |
||
193. |
Holder with a dog trigger mechanism |
||
194. |
Nut |
M8 * 1 |
|
195. |
Starting pedal |
||
196. |
Patch |
||
197. |
Wedge bolt lever |
M8 * 1 |
Number |
Title |
Description |
Price $ |

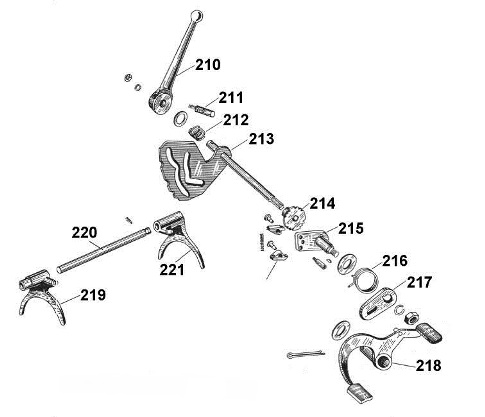

210. |
Manual gearshift lever |
||
211. |
Roller speedometer drive |
||
212. |
Spring |
||
213. |
Pie plate gearshift |
||
214. |
The ratchet mechanism gear |
||
215. |
Crank mechanism doggies foot gear |
||
216. |
Return spring switching mechanism |
||
217. |
Doggie gearshift |
||
218. |
Pedal |
||
219. |
Fork 3rd and 4th gear |
||
220. |
The guide rod gearshift forks |
||
221. |
Fork 1st and 2nd gear |
