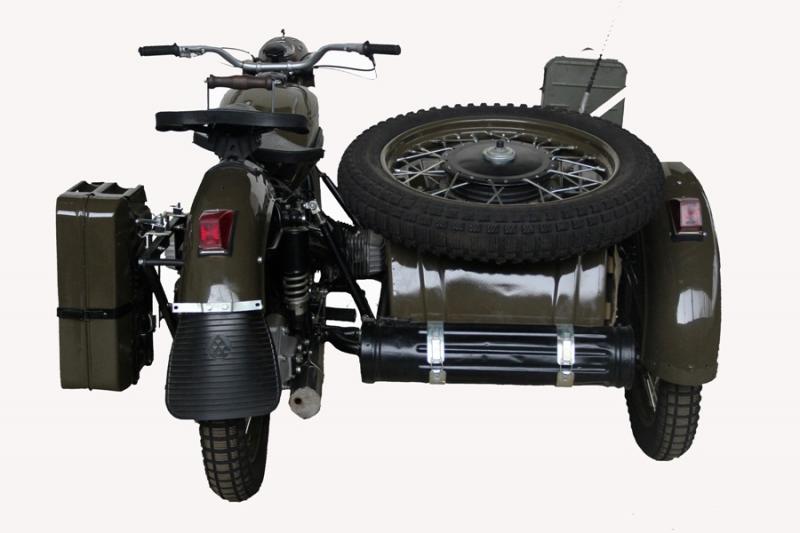

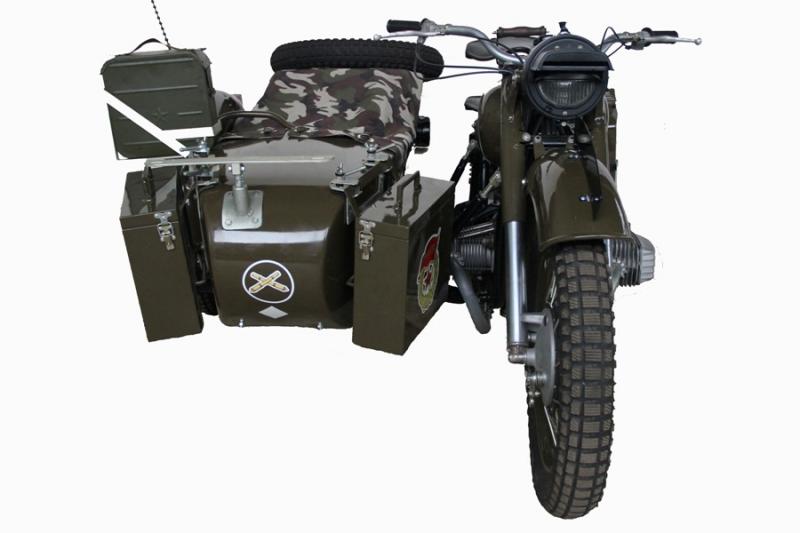

Dnepr MT-10 (1974) became the first "Dnepr" with a 12-volt electrical circuit and dvuhiskrovoy ignition coil (One coil for twocandles). Also the fuel tank capacity has been increased.
Specifications:
|
Base of motorcycle |
1500 mm. |
|
The lowest point in the unloaded state |
125 mm. |
|
Dimensions with sidecar |
Length-2430 mm., width 1680 mm., height-1080 mm. |
|
Weight of the bike (dry) |
335 kg. |
|
Max. speed |
105km / h |
|
Fuel tank capacity |
19 l. |
|
Consumption of gasoline per 100 km on the highway |
5.8 l. |
|
Engine |
2-cylinder, 4-stroke, OHV with sucker rod drive |
|
The diameter of the cylinder |
78 mm. |
|
Stroke |
68 mm. |
|
The working volume |
649 сm.cubic |
|
The compression ratio |
7.5 |
|
Cooling |
air |
|
Location of valves |
top |
|
Maximum speed at 4600-4900 rev / min |
26.5 h.p. not less |
|
Lubrication system |
combined |
|
Capacity of oil tank engine |
2n. |
|
Carburetors |
K-301B |
|
Number of carburetors |
2 pcs. |
|
Clutch |
Dry, two-plate |
|
Gearbox |
The four, with reverse gear |
|
The transfer to the rear wheel |
Driveshaft |
|
The amount of oil in the gearbox |
0.8 l. |
|
The amount of oil in the main transmission |
0.11 l. |
|
Frame |
Tubular, welded closed type |
|
Front Fork |
Telescopic with hydraulic shock absorbers |
|
Suspension Rear Wheel |
The lever on the spring-hydraulic shock absorbers |
|
Wheels |
interchangeable |
|
Tire Size (inch) |
3,75-19 |
|
Tire pressure (atm) |
Front wheel strollers - 1.5 Not more than 2 passengers - 2.0 More than 2 passengers - 2.6 |
|
Pram |
Passenger type for 1 person |
|
Ignition system |
Battery |
|
Battery |
ZMTI-16-2 |
|
Rele regulator |
PP-330 |
|
Generator |
12V |
|
Distributor |
PM-05 |
|
Light |
FG-137b |
