Dnepr K-750

Category: English version / Our work

Днепр К-750

Dnepr K-750 — is a development IMZ M-72. Has a higher compression ratio, upgraded suspension, engine cooling system. Power increased to 26 h.p. Motorcycle K750 - the first motorcycle released Kiev Motorcycle Plant (KMZ). The first motorcycle was released in 1958. The predecessor of this motorcycle M-72, the new bike is more comfortable, convenient and reliable than its predecessor. When fully loaded, the bike can easily move on different types of roads.

Specifications:

Base of motorcycle 1450 mm.
The lowest point in the unloaded state 155 mm.
Overall dimensions with stroller length-2400 mm., width 1650 mm., height-1060 mm.
Weight of the bike (dry) 318 kg.
Max. speed 100km / h
Fuel tank capacity 21-22 l.
Consumption of gasoline per 100 km. on the highway 6 l.
Engine 2-cylinder, 4-stroke
The diameter of the cylinder 78 mm.
Stroke 78 mm.
Working volume 746 cm.cubic
The compression ratio 5.7-6.1
Cooling air
Location of valves Bottom
Maximum speed at 4600-4900 rev / min 26 h.p. at least
Lubrication system combined
Capacity of oil tank engine 2n.
Carburetors C-37A
Number of carburetors 2 pcs.
Clutch Dry, two-plate
Gearbox Two-way, four-stopwise
The transfer to the rear wheel Driveshaft
The amount of oil in the gearbox 0.8 l.
The amount of oil in the main transmission 0.11 l.
Frame Tubular, welded
Front Fork Telescopic hydraulic shock absorbers
Suspension Rear Wheel The lever on the spring-hydraulic shock absorbers
Wheels interchangeable
Tire size, inch 3,75-19
Tire pressure, atm. Front wheel and rear wheel - 1.5 Not more than 2 passengers - 2.0 More than 2 passengers - 2.6
Carriage Passenger type for 1 person
Ignition system Battery
Battery WMT-12
Rele regulator PP-302
Generator G-414
Distributor PM-05
Light FG-116
Signal C-37
Taillight OP-220
Front lights strollers PF-200
Stoplight eat

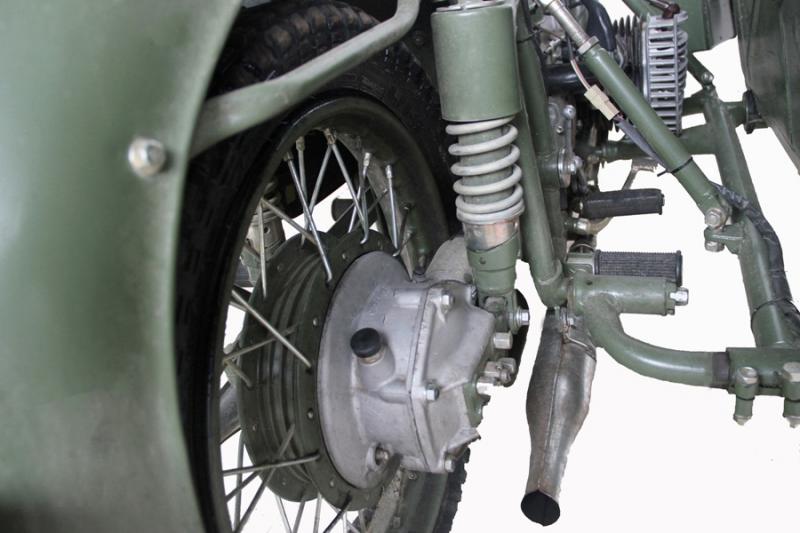

More photos of the restored motorcycle Dnepr K-750
