Dnepr MT-10-36

Category: English version / Our work

Dnepr MT-10-36 (1976) by increasing the compression ratio and a new carburetor has a capacity of 36 h.p.

Днепр МТ-10-36

Specifications:

Base of motorcycle

1500 mm.

The lowest point in the unloaded state

125 mm.

Dimensions with sidecar

Length-2430 mm., width 1680 mm., height-1080 mm.

Weight of the bike (dry)

335 kg.

Max. speed

105km / h

Fuel tank capacity

19 l.

Consumption of gasoline per 100 km on the highway

5.8 l.

Engine

2-cylinder, 4-stroke, OHV with sucker rod drive

The diameter of the cylinder

78 mm.

Stroke

68 mm.

The working volume

649 cm cubic

The compression ratio

7.5

Cooling

air

Location of valves

top

Maximum speed at 4600-4900 rev / min

26.5 h.p. not less

Lubrication system

combined

Capacity of oil tank engine

2n.

Carburetors

K-301B

Number of carburetors

2 pcs.

Clutch

Dry, two-plate

Gearbox

The four-stopwise, with reverse gear

The transfer to the rear wheel

Driveshaft

The amount of oil in the gearbox

0.8 l.

The amount of oil in the main transmission

0.11 l.

Frame

Tubular, welded closed type

Front Fork

Telescopic with hydraulic shock absorbers

Suspension Rear Wheel

The lever on the spring-hydraulic shock absorbers

Wheels

interchangeable

Tire Size (inch)

3,75-19

Tire pressure (atm)

Front wheel strollers - 1.5 Not more than 2 passengers - 2.0 More than 2 passengers - 2.6

Carriage

Passenger type for 1 person

Ignition system

Battery

Battery

ZMTI-16-2

Rele regulator

PP-330

Generator

12V

Distributor

PM-05

Light

FG-137b

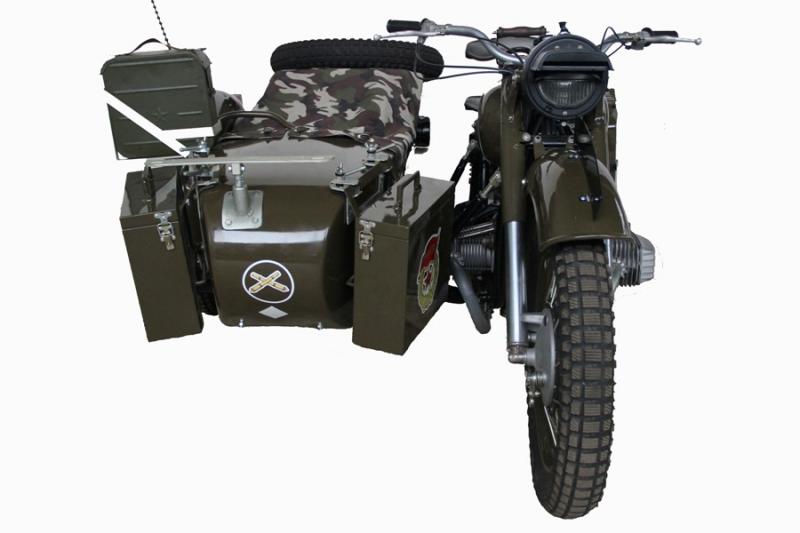

More photos of the restored motorcycle Dnepr MT-10-36
