Dnepr-12

Category: English version / Our work

Днепр-12

Dnepr-12 — heavy traffic motorcycle with sidecar, produces at KMF. Produced modification in which the wheels of the carriage. Starting with the MT-9, issued with an automatic clutch mechanism and automatic ignition timing. Models available as separate seat or with solid. Currently available as special (trucks, fire) model.



Specifications:

Base motorcycle

1510 mm.

The lowest point in the unloaded state

125 mm.

Dimensions with sidecar

Length-2430 mm., width 1700 mm., height-1100 mm.

Weight of the bike (dry)

350 kg.

Full speed

100km / h

Fuel tank capacity

19 l.

Consumption of gasoline per 100 km on the highway

9 l.

Engine

2-cylinder, 4-stroke

The diameter of the cylinder

78 mm.

Stroke

78 mm.

The working volume

746 cm. cubic

The compression ratio

6.0

Cooling

Air

Location of valves

Bottom

Maximum speed at 4600-4900 rev / min

26 h.p. not less

Lubrication system

Combined

Capacity of oil tank engine

2n.

Carburetors

K-302

Number of carburetors

2 pcs.

Clutch

Dry, two-plate

Gearbox

The four-stopwise with reverse gear

The transfer to the rear wheel

Driveshaft

The amount of oil in the gearbox

0.8l.

The amount of oil in the main transmission

0.11l.

Frame

Tubular, welded closed type

Front Fork

Telescopic with hydraulic shock absorbers

Suspension Rear Wheel

The lever on the spring-hydraulic shock absorbers double acting

Wheels

interchangeable

Tire Size (inch)

3,75-19

Tire pressure (atm)

Front wheel strollers - 1.5 Not more than 2 passengers - 2.0 More than 2 passengers - 2.6

Carriage

Passenger type for 1 person

Ignition system

Battery 6V

Battery

6V

Rele regulator

PP-302

Generator

G-414

Distributor

PM-05

Light

FG-116

Signal

C-204B

Taillight

OP-246

Front lights strollers

PF-232B

Stoplight

eat

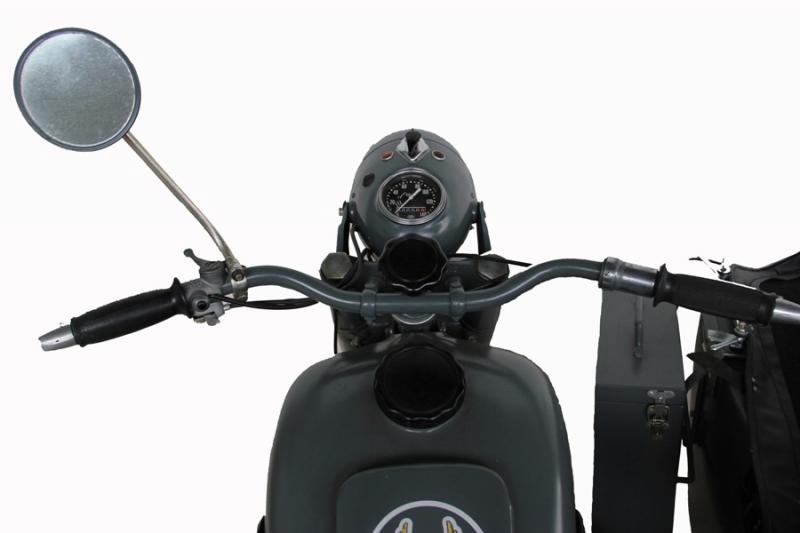

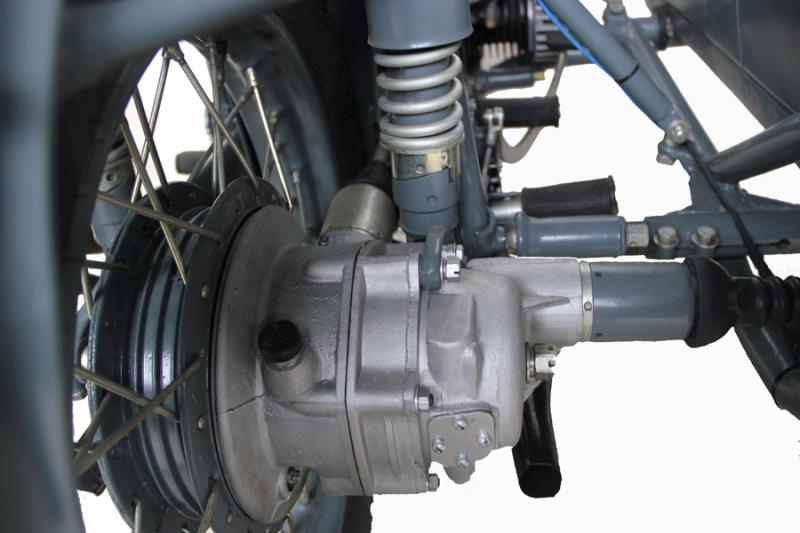

More photos of the restored motorcycle Dnepr-12
