Dnepr M-72

Category: English version / Our work

Днепр М-72



Dnepr M-72 — Soviet heavy motorcycle. Produced in large series from 1941 to 1960 at the plants MMZ (Moscow), HMP (Gorky), IMZ (Irbit), "Red October" (Leningrad), KMZ (Kiev). Originally designed exclusively for military use until the mid 50's bike is available for sale is not did. Each M-72 is a carrier of small arms he sings classified as "armor." In all there were more than 8,500 cars. Produced KAKS stroller and a single version.

Specifications:

Base of motorcycle

1450 mm.

The lowest point in the unloaded state

135 mm.

Dimensions with sidecar

length-2420 mm., width 1650 mm., height-1000 mm.

Weight of the bike (dry)

350 kg.

Max. speed

95km / h

Fuel tank capacity

22 l.

Consumption of gasoline per 100 km on the highway

7 l.

Engine

2-cylinder, 4-stroke

The diameter of the cylinder

78 mm.

Stroke

78 mm.

The working volume

746 cm.cubic

The compression ratio

5.5

Cooling

Air

Location of valves

Bottom

Maximum speed at 4450-4800 rev / min

At least 22 h.p.

Lubrication system

Combined

Capacity of oil tank engine

2n.

Carburetors

K-37

Number of carburetors

2 pcs.

Clutch

Dry, two-plate

Gearbox

Two-way, four-stepwise

The transfer to the rear wheel

Driveshaft

The amount of oil in the gearbox

0.8 l.

The amount of oil in the main transmission

0.130 l.

Frame

Tubular, molded

Front Fork

The arm with hydraulic shock absorbers

Suspension Rear Wheel

Spring

Wheels

interchangeable

Tire Size (inch)

3.75 * 19

Tire pressure

Front wheel rear wheel, 1.6atm.- 2atm., Sidecar wheel 1.8atm.

Carriage

Passenger type for 1 person

Ignition system

Battery

Battery

ZMTI-14

Rele regulator

PP-31

Generator

6V

Distributor

PM-05

Light

FG-6

Signal

C-23

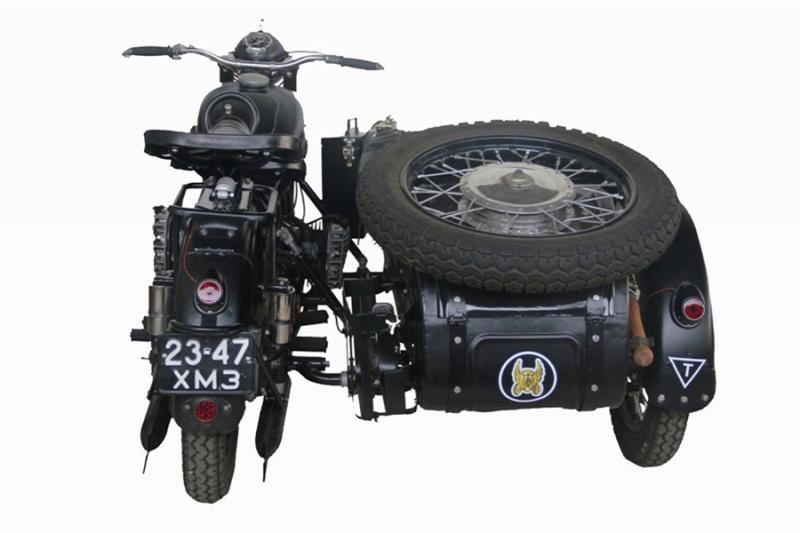

More photos of the restored motorcycle Dnepr M-72
